2005 Forest River Rockwood Specs, Towing Weight, Floorplan + Features
Photo Tour
Available Photos (Click to enlarge)
|
RV Must-Have! Never Run Out of Power Again!
|
| Year: | 2005 |
|---|---|
| Manufacturer: | Forest River |
| Model: | Rockwood |
| RV Type: | Tent Trailer |
| Condition: | New |
| Price Range: | $6,000 - $14,000 |
Description
Escape the daily grind and connect with the things that really matter like enjoying good times together with family and friends. The Rockwood pop up camper takes care of the details - all neatly packaged into one incredibly functional unit. Every component works together to give you the best vacation times possible.
Features
PREMIER STANDARD FEATURES
- Residential style kitchen faucet w/electric water pump
- Larger deeper sinks
- New soft quilted top innerspring mattresses
- Outdoor gas grill w/ worktable
- Sliding storage tray on all front trunk models
- Water-Pur filtration system w/shower models & hot water pkg.
- E-Z crank-down stabilizer jacks w/sand pads
- Electric brakes (12' models)
- Residential style raised panel doors w/positive latch hardware
- 3 double ceiling lights w/jacks for accessories
- Bunk light w/fan
- Large lift up galley w/backsplash (most models)
- Permanently mounted 3-burner indoor range w/stove cover
- Free standing table - high pressure laminate
- Comfortable family style dinette w/4" reversible cushions
- Large clothes bar
- LP leak detector
- Create-A-Breeze 3 speed Fantastic fan (Std. Opt.)
- Thermostatically controlled heated mattresses (Std. Opt.)
FREEDOM STANDARD FEATURES
- Residential style kitchen faucet w/electric water pump
- Soft quilted-top mattresses (4" high density foam)
- Outside gas grill (optional on LTD's)
- Water-Pur filtration system w/all shower models
- Permanently mounted 3-burner indoor range w/range cover (except LTD's)
- Converter w/built-in battery charger
- Electric brakes (12' Models)
- Tinted vinyl windows
- Fold over galley with upper and lower storage
- Exterior work table (Except LTD's)
- LP leak detector
- Automatic safety switch to turn off 12-volt current when roof is closed
- Large built-in ice box
- 1-Piece screen door (except LTD's)
- Metal drawer guides
- Port-A-Potty in 2290 and 1910 models
LTD. STANDARD FEATURES
- Spare tire
- Awning
- Roof vent
- Privacy curtains
- Rear crank down stabilizer jacks w/ sand pads
- Outside recep. (1940 LTD only)
- Patio light (1940 LTD only)
- Step
- Thermostatically controlled heated bed mattresses (Std. Opt.)
| Freedom/LTD Series | 1610 | 1620 | 1640LTD | 1910 | 1940LTD | 1950 | 1980 | 2270 | 2280 | 2290 | 2316G | 2318G |
| GVWR (Gross Vehicl... | 2,287 lbs. (1037 kg) | 2,259 lbs. (1025 kg) | 2,278 lbs. (1033 kg) | 2,341 lbs. (1062 kg) | 2,339 lbs. (1061 kg) | 2,355 lbs. (1068 kg) | 2,319 lbs. (1052 kg) | 2,989 lbs. (1356 kg) | 2,975 lbs. (1349 kg) | 3,111 lbs. (1411 kg) | 3,046 lbs. (1296 kg) | 3,015 lbs. (1368 kg) |
| Base/Dry Unit Weig... | 1,574 lbs. (714 kg) | 1,336 lbs. (606 kg) | 1,353 lbs. (614 kg) | 1,719 lbs. (780 kg) | 1,486 lbs. (674 kg) | 1,635 lbs. (742 kg) | 1,569 lbs. (712 kg) | 1,809 lbs. (821 kg) | 1,845 lbs. (837 kg) | 2,019 lbs. (916 kg) | 1,620 lbs. (735 kg) | 2,079 lbs. (943 kg) |
| Base/Dry Hitch Wei... | 187 lbs. (85 kg) | 159 lbs. (72 kg) | 178 lbs. (81 kg) | 241 lbs. (109 kg) | 239 lbs. (108 kg) | 255 lbs. (116 kg) | 219 lbs. (99 kg) | 269 lbs. (122 kg) | 255 lbs. (116 kg) | 391 lbs. (177 kg) | 326 lbs. (148 kg) | 295 lbs. (134 kg) |
| Base/Dry Axle Weig... | 1,387 lbs. (629 kg) | 1,177 lbs. (534 kg) | 1,175 lbs. (533 kg) | 1,478 lbs. (670 kg) | 1,247 lbs. (566 kg) | 1,380 lbs. (626 kg) | 1,350 lbs.1,350 lbs. (612 kg) | 1,540 lbs. (699 kg) | 1,590 lbs. (721 kg) | 1,628 lbs. (738 kg) | 1,294 lbs. (587 kg) | 1,784 lbs. (809 kg) |
| Cargo Capacity | 525 lbs. (238 kg) | 735 lbs. (333 kg) | 810 lbs. (367 kg) | 434 lbs. (197 kg) | 738 lbs. (335 kg) | 532 lbs. (241 kg) | 562 lbs. (255 kg) | 992 lbs. (450 kg) | 942 lbs. (427 kg) | 904 lbs. (410 kg) | 1,238 lbs. (562 kg) | 784 lbs. (356 kg) |
| Box Size | 8 ft. (2.44 m) | 8 ft. (2.44 m) | 8 ft. (2.44 m) | 10 ft. (3.05 m) | 10 ft. (3.05 m) | 10 ft. (3.05 m) | 10 ft. (3.05 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) |
| Trailer Size (Clos... | 14 ft. (4.27 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 15 ft. 11 in. (4.85 m) | 14 ft. (4.27 m) | 14 ft. (4.27 m) | 14 ft. (4.27 m) | 15 ft. 11 in. (4.85 m) | 15 ft. 11 in. (4.85 m) | 16 ft. 6 in. (5.03 m) | 16 ft. 6 in. (5.03 m) | 15 ft. 11 in. (4.85 m) |
| Height (Closed) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) | 57 in. (1.45 m) |
| Trailer Length (Op... | 17 ft. (5.18 m) | 17 ft. (5.18 m) | 17 ft. (5.18 m) | 20 ft. 2 in. (6.15 m) | 20 ft. 2 in. (6.15 m) | 20 ft. 2 in. (6.15 m) | 20 ft. 2 in. (6.15 m) | 22 ft. 6 in. (6.86 m) | 22 ft. 6 in. (6.86 m) | 22 ft. 6 in. (6.86 m) | 22 ft. 6 in. (6.86 m) | 22 ft. 6 in. (6.86 m) |
| Interior Height (O... | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) |
| Travel Width | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) |
| Tire Size | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) | 12 in. (30 cm) |
| Power Converter wi... | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS | 12 AMPS |
| Premier Series | 1904 | 1907 | 2302 | 2307 | 2308 | 2317G | 2405SS | 2514G |
| GVWR (Gross Vehicl... | 2,343 lbs. (1063 kg) | 2,355 lbs. (1068 kg) | 3,036 lbs. (1377 kg) | 3,006 lbs. (1364 kg) | 3,011 lbs. (1366 kg) | 3,006 lbs. (1364 kg) | 3,127 lbs. (1418 kg) | 3,071 lbs. (1393 kg) |
| Base/Dry Unit Weig... | 1,814 lbs. (823 kg) | 1,730 lbs. (785 kg) | 2,297 lbs. (1042 kg) | 2,225 lbs. (1009 kg) | 2,283 lbs. (1036 kg) | 2,317 lbs. (1051 kg) | 2,805 lbs. (1272 kg) | 2,605 lbs. (1182 kg) |
| Base/Dry Hitch Wei... | 243 lbs. (110 kg) | 255 lbs. (116 kg) | 316 lbs. (143 kg) | 286 lbs. (130 kg) | 291 lbs. (132 kg) | 281 lbs. (127 kg) | 407 lbs. (185 kg) | 350 lbs. (159 kg) |
| Base/Dry Axle Weig... | 1,571 lbs. (713 kg) | 1,475 lbs. (669 kg) | 1,981 lbs. (899 kg) | 1,939 lbs. (880 kg) | 1,992 lbs. (904 kg) | 2,038 lbs. (924 kg) | 2,198 lbs. (997 kg) | 2,254 lbs. (1022 kg) |
| Cargo Capacity | 341 lbs. (155 kg) | 437 lbs. (198 kg) | 551 lbs. (250 kg) | 593 lbs. (269 kg) | 540 lbs. (245 kg) | 281 lbs. (127 kg) | 334 lbs. (152 kg) | 278 lbs. (126 kg) |
| Box Size | 10 ft. (3.05 m) | 10 ft. (3.05 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) | 12 ft. (3.66 m) |
| Trailer Length (Cl... | 15 ft. 5 in. (4.70 m) | 14 ft. (4.27 m) | 17 ft.11 in. (5.46 m) | 17 ft.11 in. (5.46 m) | 17 ft.11 in. (5.46 m) | 15 ft. 5 in. (4.70 m) | 17 ft. 11 in. (5.46 m) | 17 ft.11 in. (5.46 m) |
| Height (Closed) | 57 in. (1.45 m) | 57 in. (1.45 m) | 61 in. (1.55 m) | 61 in. (1.55 m) | 61 in. (1.55 m) | 61 in. (1.55 m) | 61 in. (1.55 m) | 61 in. (1.55 m) |
| Trailer Length (Op... | 20 ft. 2 in. (6.15 m) | 20 ft. 2 in. (6.15 m) | 20 ft. 2 in. (6.15 m) | 23 ft. 6 in. (7.16 m) | 23 ft. 6 in. (7.16 m) | 23 ft. 6 in. (7.16 m) | 23 ft. 6 in. (7.16 m) | 23 ft. 6 in. (7.16 m) |
| Interior Height (O... | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) | 6 ft. 6 in. (1.98 m) |
| Travel Width | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) | 85 in. (2.16 m) |
| Tire Size | 12 in. (30 cm) | 12 in. (30 cm) | 13 in. (33 cm) | 13 in. (33 cm) | 13 in. (33 cm) | 13 in. (33 cm) | 12 in. (30 cm) | 13 in. (33 cm) |
| Power Converter wi... | 25 AMPS | 25 AMPS | 25 AMPS | 25 AMPS | 25 AMPS | 25 AMPS | 25 AMPS | 25 AMPS |

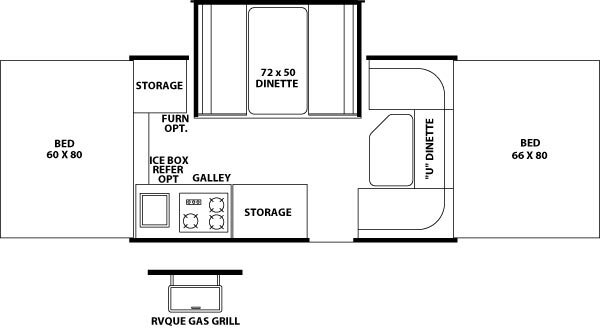

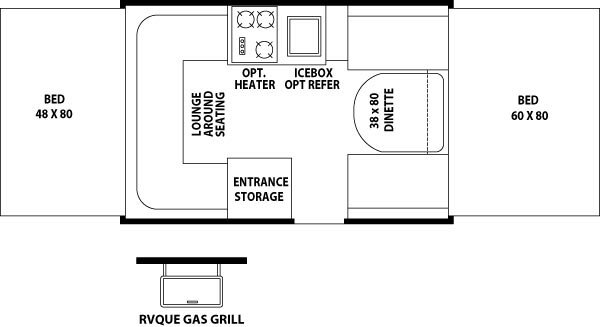

Floorplans (Click to enlarge)
