2005 Forest River Flagstaff Specs | Compare Features & Towing Guide

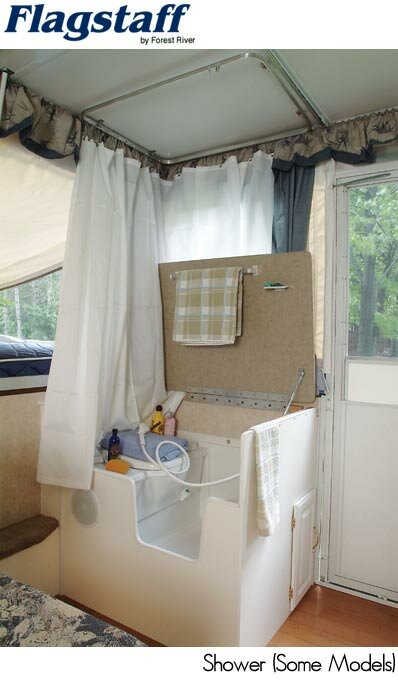

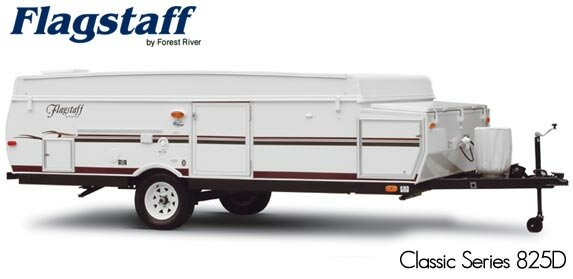

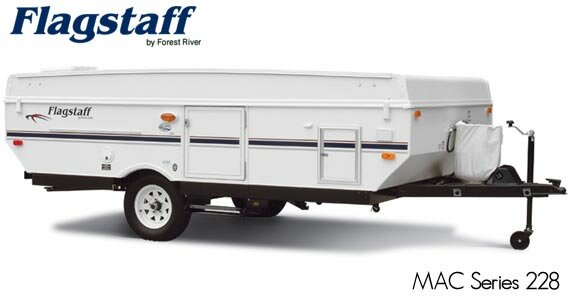

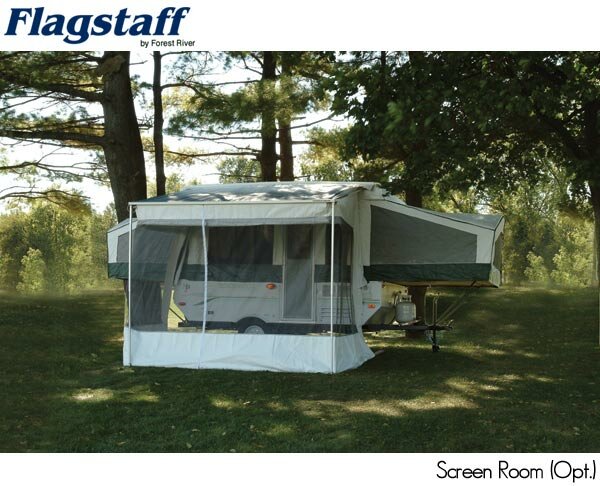

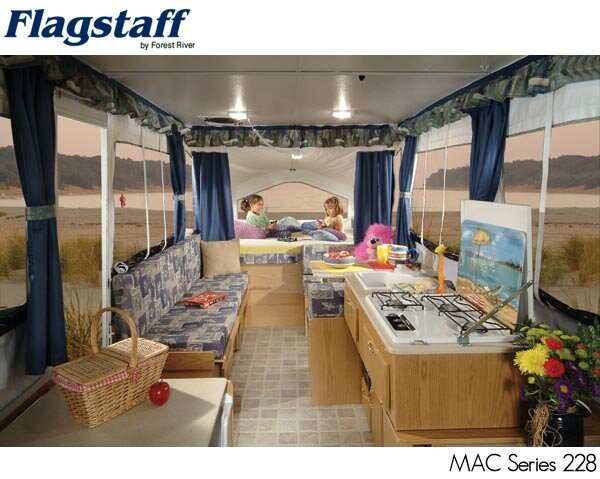

2005 Forest River Flagstaff Specs, Towing Weight, Floorplan + Features Photo Tour Available Photos (Click to enlarge) Flagftaff Tent Trailers MAC Series Exterior Classic Series Exterior MAC Series Interior Classic Series Interior Shirt Bar Hanging Pantry Shower Screen Room		RV Must-Have! Never Run Out of Power Again!

Overview
Specs
Floorplans
Towing
Electrical
Interior

Year:	2005
Manufacturer:	Forest River
Model:	Flagstaff
RV Type:	Tent Trailer
Condition:	New
Price Range:	$6,000 - $14,000

Description

The Flagstaff tent trailer is about family values. It's about enjoying good times together at a price families can afford without sacrificing comfort and convenience. Every inch of usable space is transformed into pleasingly functional living quaters. An abundant offering of standard features and available options provides for your family's every need. Best of all, it's built to last through many years of fun and adventure.

Features

CLASSIC SERIES STANDARD

Residential style kitchen faucet w/electric water pump
Larger deeper sinks
Soft quilted top innerspring mattresses
Outdoor gas grill w/ worktable
Sliding storage tray on all front trunk models
Water-Pur filtration system w/shower models & hot water pkg.
E-Z crank-down stabilizer jacks w/sand pads
Electric brakes (12' models)
Residential style raised panel doors
3 double ceiling lights w/jacks for accessories
Bunk light w/fan
Large lift up galley w/backsplash (most models)
Port-a-Potty in 425D and 620 Models
Permanently mounted 3-burner indoor range w/stove cover
Free standing table - high pressure laminate
Comfortable family style dinette w/4" reversible cushions
Large clothes bar
LP leak detector
Metal drawer guides
Create-A-Breeze 3 speed Fantastic fan (Std. Opt.)
Thermostatically controlled heated mattresses (Std. Opt.)

MAC SERIES STANDARD

Residential style kitchen faucet w/electric water pump
Drawer Guides
Outside gas grill (optional on LTD's)
Water-Pur filtration system w/all shower models
Permanently mounted 3-burner indoor range w/range cover (except LTD's)
Converter w/built-in battery charger
Electric brakes (12' Models)
Tinted vinyl windows
Fold over galley with upper and lower storage
Exterior work table (Except LTD's)
LP leak detector
Automatic safety switch to turn off 12-volt current when roof is closed
Large built-in ice box
1-Piece Screen Door (Except LTD's)
Create-A-Breeze 3 speed Fantastic fan (Std. Opt.)
Thermostatically controlled heated mattresses (Std. Opt.)
Soft-quilted-top bed mattresses (4 in. High Density Foam)
Port-A-Potty 206ST and 229 models

LTD MODELS STANDARD

Spare tire
Awning
Roof vent
Privacy curtains
Rear crank down stabilizer jacks w/ sand pads
Outside recep. (206LTD only)
Patio light (206LTD only)
Step
Thermostatically controlled heated mattresses (Std. Opt.)

Classic Series	425D	523	524SS	620ST	625D	720	822	823	823D	825D
GVWR (Gross Vehicl...	3,071 lbs. (1393 kg)	3,036 lbs. (1377 kg)	3,127 lbs. (1418 kg)	2,343 lbs. (1063 kg)	3,070 lbs. (1393 kg)	2,355 lbs. (1068 kg)	3,011 lbs. (1366 kg)	3,006 lbs. (1364 kg)	3,006 lbs. (1364 kg)	3,070 lbs. (1393 kg)
Base/Dry Unit Weig...	2,605 lbs. (1182 kg)	2,297 lbs. (1042 kg)	2,805 lbs. (1272 kg)	1,814 lbs. (823 kg)	2,447 lbs. (1110 kg)	1,730 lbs. (785 kg)	2,283 lbs. (1036 kg)	2,225 lbs. (1009 kg)	2,317 lbs. (1051 kg)	2,447 lbs. (1110 kg)
Base/Dry Hitch Wei...	351 lbs. (159 kg)	316 lbs. (143 kg)	407 lbs. (185 kg)	273 lbs. (124 kg)	350 lbs. (159 kg)	255 lbs. (116 kg)	291 lbs. (132 kg)	286 lbs. (130 kg)	281 lbs. (127 kg)	350 lbs. (159 kg)
Base/Dry Axle Weig...	2,254 lbs. (1022 kg)	1,981 lbs. (899 kg)	2,198 lbs. (997 kg)	1,571 lbs. (713 kg)	2,097 lbs. (951 kg)	1,475 lbs. (669 kg)	1,992 lbs. (904 kg)	1,939 lbs. (880 kg)	2,038 lbs. (924 kg)	2,097 lbs. (951 kg)
Cargo Capacity	278 lbs. (126 kg)	551 lbs. (250 kg)	334 lbs. (152 kg)	341 lbs. (155 kg)	435 lbs. (197 kg)	437 lbs. (198 kg)	540 lbs. (245 kg)	593 lbs. (269 kg)	281 lbs. (127 kg)	435 lbs. (197 kg)
Box Size	12 ft. (3.66 m)	12 ft. (3.66 m)	12 ft. (3.66 m)	10 ft. (3.05 m)	12 ft. (3.66 m)	10 ft. (3.05 m)	12 ft. (3.66 m)	12 ft. (3.66 m)	12 ft. (3.66 m)	12 ft. (3.66 m)
Trailer Size (Clos...	17 ft.11 in. (5.46 m)	17 ft.11 in. (5.46 m)	17 ft. 11 in. (5.46 m)	15 ft. 5 in. (4.70 m)	17 ft.11 in. (5.46 m)	14 ft. (4.27 m)	17 ft.11 in. (5.46 m)	17 ft.11 in. (5.46 m)	15 ft. 5 in. (4.70 m)	17 ft.11 in. (5.46 m)
Height (Closed)	61 in. (1.55 m)	61 in. (1.55 m)	61 in. (1.55 m)	57 in. (1.45 m)	61 in. (1.55 m)	57 in. (1.45 m)	61 in. (1.55 m)	61 in. (1.55 m)	61 in. (1.55 m)	61 in. (1.55 m)
Trailer Length (Op...	23 ft. 6 in. (7.16 m)	23 ft. 6 in. (7.16 m)	23 ft. 6 in. (7.16 m)	20 ft. 2 in. (6.15 m)	23 ft. 6 in. (7.16 m)	20 ft. 2 in. (6.15 m)	23 ft. 6 in. (7.16 m)	23 ft. 6 in. (7.16 m)	23 ft. 6 in. (7.16 m)	23 ft. 6 in. (7.16 m)
Interior Height (O...	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)
Travel Width	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)
Tire Size	13 in. (33 cm)	13 in. (33 cm)	12 in. (30 cm)	12 in. (30 cm)	13 in. (33 cm)	12 in. (30 cm)	13 in. (33 cm)	13 in. (33 cm)	13 in. (33 cm)	13 in. (33 cm)
Power Converter wi...	25 AMPS	25 AMPS	25 AMPS	25 AMPS	25 AMPS	25 AMPS	25 AMPS	25 AMPS	25 AMPS	25 AMPS

MAC/LTD Series	176ED	205	206ST	208	226D	228D	229
GVWR (Gross Vehicl...	2,259 lbs. (1025 kg)	2,355 lbs. (1068 kg)	2,341 lbs. (1062 kg)	2,319 lbs. (1052 kg)	3,046 lbs. (1382 kg)	3,015 lbs. (1368 kg)	3,111 lbs. (1411 kg)
Base/Dry Unit Weig...	1,336 lbs. (606 kg)	1,635 lbs. (742 kg)	1,719 lbs. (780 kg)	1,569 lbs. (712 kg)	1,620 lbs. (735 kg)	2,079 lbs. (943 kg)	2,019 lbs. (916 kg)
Base/Dry Hitch Wei...	159 lbs. (72 kg)	255 lbs. (116 kg)	241 lbs. (109 kg)	219 lbs. (99 kg)	326 lbs. (148 kg)	295 lbs. (134 kg)	391 lbs. (177 kg)
Base/Dry Axle Weig...	1,177 lbs. (534 kg)	1,380 lbs. (626 kg)	1,478 lbs. (670 kg)	1,350 lbs. (612 kg)	1,294 lbs. (587 kg)	1,784 lbs. (809 kg)	1,628 lbs. (738 kg)
Cargo Capacity	735 lbs. (333 kg)	532 lbs. (241 kg)	434 lbs. (197 kg)	562 lbs. (255 kg)	1,238 lbs. (562 kg)	784 lbs. (356 kg)	944 lbs. (428 kg)
Box Size	8 ft. (2.44 m)	10 ft. (3.05 m)	10 ft. (3.05 m)	10 ft. (3.05 m)	12 ft. (3.66 m)	12 ft. (3.66 m)	12 ft. (3.66 m)
Trailer Size (Clos...	12 ft. (3.66 m)	14 ft. (4.27 m)	15 ft. 11 in. (4.85 m)	14 ft. (4.27 m)	16 ft. 6 in. (5.03 m)	15 ft. 11 in. (4.85 m)	16 ft. 6 in. (5.03 m)
Height (Closed)	57 in. (1.45 m)	57 in. (1.45 m)	57 in. (1.45 m)	57 in. (1.45 m)	57 in. (1.45 m)	57 in. (1.45 m)	57 in. (1.45 m)
Trailer Length (Op...	17 ft. (5.18 m)	20 ft. 2 in. (6.15 m)	20 ft. 2 in. (6.15 m)	20 ft. 2 in. (6.15 m)	22 ft. 6 in. (6.86 m)	22 ft. 6 in. (6.86 m)	22 ft. 6 in. (6.86 m)
Interior Height (O...	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)	6 ft. 6 in. (1.98 m)
Travel Width	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)	85 in. (2.16 m)
Tire Size	12 in. (30 cm)	12 in. (30 cm)	12 in. (30 cm)	12 in. (30 cm)	12 in. (30 cm)	12 in. (30 cm)	12 in. (30 cm)
Power Converter wi...	12 AMPS	12 AMPS	12 AMPS	12 AMPS	12 AMPS	12 AMPS	12 AMPS
