2005 Fleetwood PACE ARROW Specs | Compare Features & Towing Guide


2005 Fleetwood PACE ARROW Specs, Towing Weight, Floorplan + Features Photo Tour Available Photos (Click to enlarge) Exterior Exterior Exterior Interior Interior Dining Area Kitchen Bedroom Shower Cockpit		RV Must-Have! Never Run Out of Power Again!

Overview
Specs

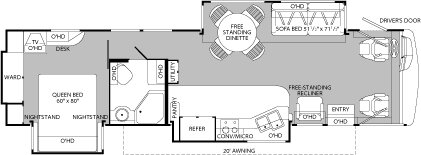

Floorplans
Towing
Electrical
Interior

Year:	2005
Manufacturer:	Fleetwood
Model:	PACE ARROW
RV Type:	Class A
Fuel:	Gasoline
Condition:	New
Price Range:	$106,000 - $162,000

Description

Life is good and you should enjoy every moment of it. Take advantage of what the road has to offer. Seize the day in style and venture wherever you like with seamless ease. Walk tall, a little showing off never hurt anyone.

Features

KEY PACE ARROW FEATURES FOR 2005

Vacu-Bond® Walls w/Smooth High-Gloss Exterior Tuff-Coat® Fiberglass
Vacu-bond® Floor
Tuff-Ply UV-Resistant Heat/Cold Insulated Roofing Technology
Power Platform
Complete TuffPex® Plumbing System (Tubing Guaranteed Against Leaks for 25 Years)
Whole Coach Water Filter
Deluxe Ball Bearing, Full Extension Drawer Guides
Alder-Stained Drawer Fronts & Raised Panel Cabinet Doors, Arched Designs, Glass Inserts in Selected Locations
Driver/Passenger Ultraleather™ Captain's Chairs w/ Reclining Back/Slide Controls w/Power Driver Seat
Dual Media Radio w/AM/FM/ Cassette/CD/MX Electronic Tuning
Dual Roof A/C High Efficiency w/Solar Panel & Chill Grilles
Panasonic® 5-Disc DVD Home Theater Sound System
Panasonic® 27" Flat Screen TV in Front Overhead
Large Double Stainless Steel Galley Sink
12 cu. ft. Stainless Steel Dometic® Refrigerator w/Ice Maker
Panasonic® 20" Flat Screen TV - Bedroom
Restonic® Deluxe Pillow Top Innerspring Mattress
Single Level Shower Control, Nickel Finish, w/Slide Adjustable Shower Head & Soap Dish
Shower Dispenser for Lotion, Shampoo, Soap, Etc.
Awning Rail/Drip Molding (Both Sides)
Utility Compartment w/Exterior Shower
4-Point Automatic Leveler System
Rear Vision Camera w/One-Way Audio
Molded Polyethylene Storage Compartments
Vacu-bond® Upper/Lower Floors
Vacu-bond® Walls w/Smooth, High-Gloss Exterior Fiberglass
Royal Tuff-Ply Roof

	35G	36B	37A	37C
Wheelbase	228"	228"	242"	242"
GVWR (lbs)1	22,000	22,000	22,000	22,000
Front GAWR (lbs)2	8,000	8,000	8,000	8,000
Rear GAWR (lbs)2	14,500	14,500	14,500	14,500
Base Weight (lbs)3	18,600	19,100	18,600	19,500
GCWR (lbs)4	26,000	26,000	26,000	26,000
Tongue Weight (lbs)5	500	500	500	500
Fuel Capacity (gal)	75	75	75	75
Engine Displacement (Lit...	8.1	8.1	8.1	8.1
Hitch Rating Weight (lbs...	5,000	5,000	5,000	5,000
Overall Length7	35' 8"	36' 2"	37' 8"	37' 8"
Overall Height (with A/C...	12' 10"	12' 10"	12' 10"	12' 10"
Overall Width (maximum)8	102"	102"	102"	102"
Interior Height (maximum...	84"	84"	84"	84"
Interior Width (maximum)	96"	96"	96"	96"
Fresh Water Holding Tank...	80	80	80	80
Grey Water Holding Tank ...	58	58	58	58
Black Water Holding Tank...	47	42	42	42
Appliance LPG Tank (gal)...	25	25	25	25
Water Heater Tank (gal)	10	10	10	10
