2004 Fleetwood TERRY DAKOTA - Travel Trailer | Specs, Towing Weight, Floorplan + Features


2004 Fleetwood TERRY DAKOTA Specs, Towing Weight, Floorplan + Features Photo Tour Available Photos (Click to enlarge) Exterior Interior/Dinette Interior/Kitchen Bedroom		RV Must-Have! Never Run Out of Power Again!

Overview
Specs
Floorplans
Towing
Electrical
Interior

Year:	2004
Manufacturer:	Fleetwood
Model:	TERRY DAKOTA
RV Type:	Travel Trailer
Condition:	Used
Price Range:	$15,000 - $23,000

Description

Terry Dakota puts quality, functionality and affordability together to get you on the road. Lightweight construction allows this product to be towed behind most of today's SUV's. Dakota is built with attention to detail and provides ample storage and accommodations. This RV is all about value.

Features

EXTERIOR

Smooth Fiberglass Siding
Aluminum Framed Sidewalls
Rear Bumper w/Sewer Hose Carrier and Aluminum Cover
Locking, Insulated Luggage Doors
One-Piece Seamless Roof
Molded Wheel Well Skirts
Radius Truss Roof Rafters
Hitch Light
Entry Step Light
Patio Light-Interior Switch
Security Light (Doorside)
Sub-Floor Fresh Water Holding Tank
Welded, Dual Battery Rack (Travel Trailer Models Only)
Tinted Safety Glass Windows

INTERIOR

Overhead Storage Cabinets
Innerspring Mattress (Most Models)
Decor Wall Border
Decor-Coordinated Bedspread (Most Models)
Miniblinds Throughout (Except Bunk Windows)
Bedroom Headboards
Pantry with Pull-Out Basket (Most Models)
Raised Panel Overhead Cabinet Doors
Pedestal Table with Large Dinette Window

	255BHS	24BH	28BH	830Y
GVWR (Gross Vehicle Weig...	8,100	6,200	7,500	7,500
Gross Dry Weight (lbs.)2...	5,952	4,190	4,574	5,472
Maximum Carrying Capacit...	2,148	2,040	2,926	2,028
Hitch Dry Weight (lbs.)2...	1,128	494	562	637
Length (' and ")4,6...	27' 6"	26' 6"	29' 7"	30' 11"
Height (' and ")5,6	10' 9"	9' 1"	9' 11"	9' 11"
Tire Size (Load Range)	ST205/75R 15"(C)	ST205/75R 14"(C)	ST205/75R 15"(C)	ST205/75R 15"(C)
Fresh Water Holding Tank...	40	40	40	40
Gray Water Holding Tank ...	40	40	40	40
Black Water Holding Tank...	40	40	40	40
LP Gas Capacity (lbs.)6	60	60	60	60

1. (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. All dry weights are based on the standard model and do not include optional features or equipment.
3. Maximum Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Maximum Carrying Capacity includes all fluids, optional features, equipment, and personal cargo.
4. Trailer length includes 3' 6" for hitch; fifth wheel includes standard pin box.
5. Add 9" if equipped with optional roof air conditioner.
6. Approximate.
7. Add 10" if equipped with optional spare tire and carrier.

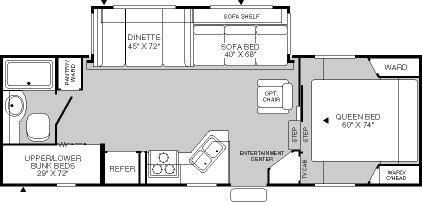

Floorplans (Click to enlarge)
