Year:	2004
Manufacturer:	Fleetwood
Model:	TERRY
RV Type:	Travel Trailer
Condition:	Used
Price Range:	$16,000 - $28,000

Description

With Terry you can enjoy the quiet view of a sunrise while sipping coffee in the roomy slide-out dinette, or fall asleep to the gentle sound of the day winding down from an open bedroom window. The sturdy, solid, aerodynamic exterior comfortably encases the elegant quality within. And each unique floor plan comes with a two-year full - not limited - warranty, so you can rest assured.

Features

INTERIOR

Entry Assist Handle
Larger Dinettes & Tables than 2003 Models (Most Models)
Built in Magazine Rack
18% Taller Bedroom Windows than 2003 Models
Built-In Bedroom TV Viewing Area
Solid Passage Doors
6'6" Bedroom Ceiling Height
Angled Front Bedroom Cabinetry (Mid Profile 5th Wheels)
350 lb. Bunk Weight Rating
Innerspring Mattress
Miniblinds Throughout (Except Bunk Windows)
Raised Panel Overhead Cabinet Doors

EXTERIOR

I-Beam Main Rails
Cambered Chassis
Awning
Extended Pin Box & Power Landing Gear (5th Wheels)
Quick Drain Holding Tank (Fresh Water)
Phone & Satellite Jacks
Water Resistant Mini-Breaker
Split Tank LP Gas System (5th Wheels)
Locking, Lined Luggage Compartments with Lights
Finished Luggage Door Openings
Split Front 5th Wheel Luggage Doors
Front & Rear Colored Skirt End Caps
Tinted Safety Glass Windows
Improved Slide-Out Seals
Larger Pass Thru Luggage Areas than 2003 Models
LP Gas Quick Connector (Low Pressure)
Rear Bumper with Sewer Hose Carrier
One-Piece Seamless Roof
Molded Wheel Well Skirts
Radius Truss Roof Rafters
Hitch Light
Welded, Dual Battery Rack (Travel Trailer Models Only)

	245CKS	245RKS	255BHS	255RLDS	275CKS	285RKS	285RLS	295BHS	2952BS
GVWR (Gross Vehicle Weig...	9,300	9,100	9,700	10,200	9,300	10,200	10,200	11,200	11,400
Gross Dry Weight (lbs.)2...	6,500	6,172	6,890	7,546	6,914	7,355	7,607	7,566	7,994
Maximum Carrying Capacit...	2,800	2,928	2,810	2,654	2,386	2,845	2,593	3,634	3,406
Hitch Dry Weight (lbs.)2...	1,081	1,147	1,257	1,389	1,053	1,568	1,423	1,413	1,359
Length (' and ")4,6...	25' 4"	26' 0"	27' 9"	27' 4"	28' 3"	29' 11"	30' 4"	31' 8"	32' 5"
Height (' and ")5,6	11' 7"	11' 7"	11' 7"	11' 7"	11' 7"	11' 9"	11' 9"	11' 9"	11' 9"
Tire Size (Load Range)	ST225/75R 15"(C)	ST225/75R 15"(C)	ST225/75R 15"(C)	ST205/75R 15"(C)	ST225/75R 15"(C)	ST225/75R 15"(C)	ST225/75R 15"(C)	ST225/75R 15"(D)	ST225/75R 15"(D)
Fresh Water Holding Tank...	40	40	40	40	40	40	40	40	40
Gray Water Holding Tank ...	40	40	40	40	40	40/40	40/40	40	40/40
Black Water Holding Tank...	40	40	40	40	40	40	40	40	40
LP Gas Capacity (lbs.)6	60	60	60	60	60	60	60	60	60

1. (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. All dry weights are based on the standard model and do not include optional features or equipment.
3. Maximum Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Maximum Carrying Capacity includes all fluids, optional features, equipment, and personal cargo.
4. Trailer length includes 3' 6" for hitch; fifth wheel includes standard pin box.
5. Add 9" if equipped with optional roof air conditioner.
6. Approximate.
7. Add 10" if equipped with optional spare tire and carrier.

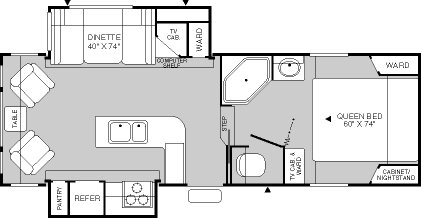

Floorplans (Click to enlarge)
