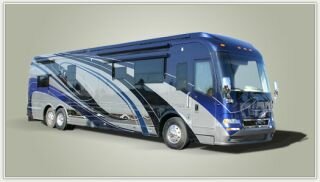

2006 Country Coach Affinity Specs, Towing Weight, Floorplan + Features Photo Tour Available Photos (Click to enlarge) Exterior Exterior Side Back Rear Interior Interior Dinette Kitchen Bedroom Bathroom		RV Must-Have! Never Run Out of Power Again!

Overview
Specs
Floorplans
Towing
Electrical
Interior

Year:	2006
Manufacturer:	Country Coach
Model:	Affinity
RV Type:	Class A
Condition:	New
Price Range:	$546,000 - $826,000

Description

Affinity 730
The 2006 Country Coach Affinity 730 is where you create your motorcoach. Not just a motorcoach. YOUR motorcoach. The Affinity 730 begins where the Magna 630 leaves off, taking advantage of that platform's advanced engineering for powertrain, chassis and aerodynamics. Yet, the 730 begins with four unique floorplans, and leaves the rest wide open. Choose your interior fabrics, your cabinetry configurations. Choose your favorite things. Make the Affinity 730 your custom home on the road.

Affinity 770LX
Still fettered by rules? Phrases like "floorplan choices" a little too cumbersome? Welcome to the world of the Affinity 770LX. Much like our Country Coach Prevost Conversion, the 770LX in its purest form is an exercise in our clients' free will, exquisitely executed. Simply put, what do you wish? Push the limits of The World's Finest Motorcoaches, and create a motorcoach of singular beauty, a perfect expression of you.

Features

DRIVER COMPARTMENT AMENITIES

6–way power–operated massage/heated driver and passenger seats with adjustable headrests (driver seat offers a sliding seat cushion and the passenger seat provides a power footrest)
"Buddy" power passenger seat
Species hardwood overhead with storage
Custom contoured Ultraleather® dash
Data–bus instrumentation includes: speedometer, tachometer, air pressure, oil pressure, transmission temperature, volt meter, water temperature, fuel level, odometer, trip odometer, and indicator lights
SilverLeaf® digital dash
SilverLeaf® VMS 200 EL digital engine monitor with auto–temp/travel information center
GPS navigation system with voice command and color LCD touch–screen
Concealable touch–screen color rear–view monitor with AM/FM/XM stereo and compact disc controls with remote CD changer and two speakers
Vorad® collision avoidance and cruise control system
Single–piece wrap–around windshield with shade band
Concealed power sun visors for driver, passenger and driver's toll window
Radial single–motor windshield wipers with delay and washers
Heating/cooling/defrost unit in dash (dual zone and dual blower controls for driver/passenger)
Ducted overhead defrost system
Power privacy black–out curtain
Back–up alarm
Dual map lights
18" SmartWheel® burlwood steering wheel with controls for horn, head light flash, marker light flash, cruise functions, wiper functions, and high beam light
SmarTire™ II monitoring system
Bound floor carpets for entry steps
Tiled entry stepwell, landing and driver's area floor
Built–in valet tray for driver
12–volt receptacle in dash
Entry door interior assist grip

GENERAL CONVENIENCES

Custom crafted light, medium, dark oak or cherry, walnut, hickory or maple cabinetry (Cathedral–arched raised panel or raised panel) and woodwork with semi–gloss finish
Decorative knobs and pulls
Self–closing drawer guides
Hardwood pocket doors
Padded vinyl ceiling
Decorative ceiling console with recessed halogen lights and whisper air conditioning vents
Custom interior décor kit (preset)
Custom interior package
Decorative glass inserts (up to four standard, location specific)
Decorative glass inserts in addition to standard four (location specific)
Custom style J–sofa
Computer table with charging center
Wallpaper throughout (designer–coordinated)
Halogen lighting throughout
Rope lighting at galley and vanity toekicks, living room/dining area/bedroom window boxes, slide–out room soffits and lighted valances
Decorative window boxes and valances in living room, dining area and bedroom with solid–surface sill
Electric Vienna shades in living room, dining area and bedroom
Ceiling and wall sconce lighting with dimmers
Sculpted carpet in living area
Full tile living room floor
Radiant floor heat in living room (available with full tile living room option)
Pre–wired for solar panels
Washer/dryer combo with tile flooring area
Stacked washer/dryer with tile floor in front (floorplan dependent)
Ironing board
Furniture quality step stool
Vacuum cleaner
Built–in safe with combination lock
Telephone jacks (three in living area, one in bedroom and one in storage bay)
Stepwell light
Burglar alarm (inside/outside protection) with key fob controlled keyless entry with security light activation
Smoke detector
Carbon monoxide detector
Fire extinguisher
Power step slide cover
Emergency roadside service (first year paid by Country Coach)
SilverLeaf® house monitoring system:
120 and 12–volt devices
Controls inverter/converter
Monitors holding tank levels
Operates fresh water fill
Operates generator
Factory delivery

FRONT ENTERTAINMENT

37" Sharp AQUOS™ LCD high definition TV (in dash overhead)
32" LCD high definition TV available in living room (floorplan dependent)
VCR
TracStar® satellite HDTV system with one receiver in living area
Universal RF remote operational switching for front and rear TV, VCR, and DVD recorder
Integra® by Onkyo home theater system with DVD recorder
Home theater digital control panel
Black–out shades in living area

GALLEY AMENITIES

Polished solid–surface countertops with edge detail
Solid–surface splashguard located at forward end of countertop
Full tile backsplash
Granite countertops with wood window sills and stainless steel galley sink
Double bowl solid–surface sink with solid–surface covers and single–lever faucet with pull–out sprayer
Thermostatically–controlled variable speed fan with rain sensor, insulated cover, and dome stop switch
Amana® 21.6 cu. ft. two door side–by–side electric refrigerator/freezer with icemaker and raised panel inserts on doors
Advantium® Speedcook oven with power hood
Recessed 2–burner electric cooktop with solid–surface cover
Stainless steel appliance package
Wood window box with mini blinds on galley window
Dining area seating variations:
Dining area wall cabinet and wall–mounted dining table with fore and aft slide mechanism, and four chairs (includes two folding)
wall–mounted café dinette
café dinette sleeper
Tile flooring on main floor, carpet in slide rooms
Radiant floor heating (galley and bath)
Decorative dining area light
Pull–out bread board
Cutlery tray in top drawer of galley
Pull–out trash receptacle
Glassware cabinet with drink set
Galley ceiling lights controlled by dimmer switches
Convenience lights in lower galley cabinets
Wine rack in dinette wall module
Dishwasher drawer

BATH AMENITIES

Polished solid–surface countertops with edge detail
Granite countertops
Full tile backsplash
Solid–surface vanity sink (under–mount)
Decorative bar light(s) for each vanity
Vanity overhead with mirrored doors
Towel ring at each vanity sink, towel bar and toilet tissue holder
Radius shower with solid–surface shower walls and decorative tile insert
Etched glass shower enclosure
Insulated skylight above shower
Light in shower
Electric china toilet
Water pump switch
Thermostatically–controlled variable speed fan with remote switch, rain sensor, insulated cover and dome stop switch
Handheld pressure–balanced shower unit
Hardwood pocket door with full–length mirror
Tile flooring
Radiant floor heating (galley and bath)
Mini–blinds with fabric valance on bath window
Clothes hamper with spare bag

BEDROOM AMENITIES

60" x 77" mattress
King bed 72"x77" (floorplan dependent)
California queen bed 66"x77" (floorplan dependent)
Queen air mattress (floorplan dependent)
California queen air mattress (floorplan dependent)
Bedroom cabinet with dresser drawers
Designer headboard
Bedspread with reversible sham and three throw pillows
Two nightstands with solid–surface countertops and edge detail
Ceiling lights controlled by 3–way dimmer switch
Wardrobe with lighting
Wall sconce lighting
Remote switching: generator start/stop, Hydro–Hot® (diesel, electric, and engine preheat), curb lights, rear flood lights, and over–the–road A/C blower
32" LCD high definition TV with overhead home theater speakers
Additional satellite/HDTV receiver in bedroom
AM/FM CD stereo
Adjustable reading lights
Telephone jack
Carpet
Over–the–road 15,000 BTU air conditioning cooling unit

POWER SOURCES

12–volt battery boost system
Automatic low–voltage generator start
Onan® 12.5 kW "quiet" liquid–cooled diesel generator with remote start/stop (on electric roll–out)
Power Tech 12.0 kW "quiet" generator with remote start/stop CAT® liquid–cooled engine (on electric roll–out)
Two 3000–watt solid state, PROsine inverters and 130–amp solid state converter/charger with 15–amp chassis battery charge system
50–amp shore service with cord, power reel, and 30–amp adapter
Four AGM 8D domestic deep cycle batteries on roll–outs with 12–volt disconnect switch located on the entry switch panel
Two 8D chassis deep cycle engine cranking batteries on roll–out with 12–volt disconnect in service center
50–amp shore service surge protector with auto–transfer switch
400 watt solar panels

PLUMBING FEATURES

Heated and insulated fiberglass plumbing bay
On–demand hydronically heated hot water system with electric back–up
10 gallon electric water heater
12–volt on–demand water pump
Three water pump switch locations (plumbing bay, living room, and bath)
Fresh water low–point drain valve
Black and gray water tank flush system
City water to water tank fill located in plumbing bay
Water filtration system
Exterior hot/cold running water with spray fixture (plumbing bay)
Electric fresh water hose reel

SLIDE–OUT ROOM SPECIAL FEATURES

Push–button slide–activation control panels
Hydraulic slide room mechanisms
Pleated shade(s) on galley slides
Emergency hand–operated winch for slide rooms
Slide room toppers
Automatic travel lock when slide room is retracted

FLOORPLAN	SLIDE-OUT	WIDTH	DEPTH	HEIGHT
40' Sonoma Coast	Living room	11'–3"	2'–8"	6'–0"
	Galley	12'–8"	1'–8"	5'–8"
	PS Bedroom	6'–9"	1'–2"	5'–6"
	DS Bedroom	9'–2"	2'–0"	5'–1"
42' Atlas Peak	Living room	12'–7"	2'–8"	6'–0"
	Galley	13'–8"	1'–8"	5'–8"
	PS Bedroom	6'–6"	1'–2"	5'–6"
	DS Bedroom	7'–11"	2'–0"	5'–1"
45' Alexander Valley	Living room	12'–7"	2'–8"	6'–0"
	Galley	12'–8"	1'–8"	5'–8"
	PS Bedroom	5'–10"	1'–2"	5'–6"
	DS Bedroom	10'–11"	2'–0"	5'–1"
45' Stag's Leap	Living room	12'–7"	2'–8"	6'–0"
	Galley	16'–1"	1'–8"	5'–8"
	PS Bedroom	6'–6"	1'–2"	5'–6"
	DS Bedroom	10'–11"	2'–0"	5'–1"
