2005 Country Coach Inspire 330 Specs | Compare Features & Towing Guide

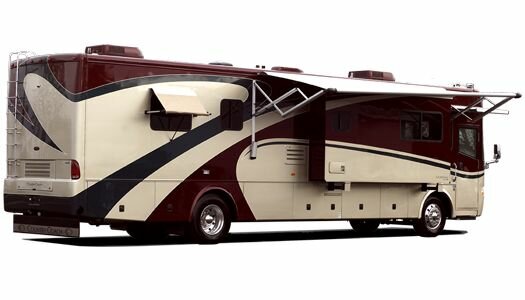

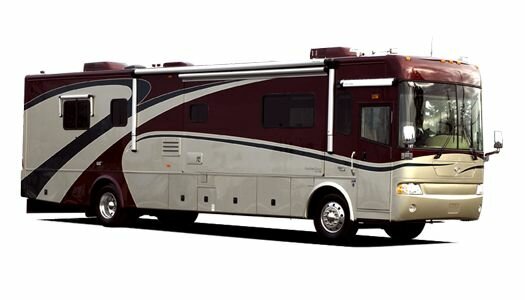

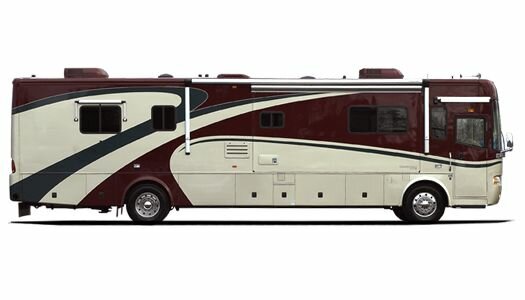

2005 Country Coach Inspire 330 Specs, Towing Weight, Floorplan + Features Photo Tour Available Photos (Click to enlarge) Exterior #1 Exterior #2 Exterior #3 Interior #1 Interior #2 Interior #3 Interior #4		RV Must-Have! Never Run Out of Power Again!

Overview
Specs
Floorplans
Towing
Electrical
Interior

Year:	2005
Manufacturer:	Country Coach
Model:	Inspire 330
RV Type:	Class A
Condition:	New
Price Range:	$183,000 - $279,000

Description

The Inspire is designed and constructed with Country Coach's long-lasting commitment to quality and the motorcoaching lifestyle. Along with the handcrafted cabinetry, designer-coordinated interior schemes and luxurious exterior graphics that you've come to expect from Country Coach, you'll find a variety of residential amenities designed to enhance your travels on the open road.

CHASSIS SPECIFICATIONS

DynoMax chassis: semi-monocoque construction with 10” x 3” x 1/4” (36’) or 8” x 3” x 1/4” (40’) tube with welded components
-10,000 lb. Class III receiver hitch withelectrical connector and chrome cover
-2-year/unlimited mile chassis warranty
GVWR: 32,800 lbs.
GCWR: 42,800 lbs.
Wheelbase: 36’ Siena – 229”; 40’ DaVinci – 265”; 40’ Genoa – 277”
Engine: Caterpillar C-9 8.8L 400HP with 1100 lb/ft torque at 1300 RPM
-Alternator: 160 amps
-120 volt, 1,000 watt engine block heater
-5-year/100,000 mile engine warranty
-Engine exhaust brake
Transmission: Allison 3000 MH w/PTO
-Six speed automatic with 2 overdrive gears
-Keypad electronic shifter with digital display
-5-year/unlimited mile transmission warranty(with TRANSYND® fluid)
Driveline: Dana Spicer 1710 Series
Suspension: Front—Holland/Neway independent front suspension model IFS-114-CC rated at 12,800 lbs. GAWR with double wishbone construction and full air suspension system with electric manual dump, drum brakes, IPD anti-sway bar, and Koni adjustable shock absorbers.
Rear—Holland/Neway rear air suspension system with electric manual dump and Koni adjustable shock absorbers.
Drive axle: Meritor model RS-21145 rated at 20,000 lbs. GAWR with 4.88 differential ratio
Steering: Fully-integral, full time hydraulic power steering gear with tilt and telescoping column
Electronic cruise control
Parking brake: Spring applied, air release on rear drum brakes
Teleflex adjustable electronic throttle and brake pedal
Service brakes: full air brakes with ABS and automatic slack adjusters
-16.5” x 5” front axle
-16.5” x 7” rear axle
Tires: Steel belted radials 11 R x 22.5 (6)
Wheels: Front, two 8.25” x 22.5” aluminum alloy wheels; Rear, two 8.25” x 22.5”aluminum alloy wheels and two 8.25” x 22.5” inner dual steel wheels
Battery: One heavy duty 8D with 12 volt disconnect
Fuel capacity: 110 gallon (dual fuel fills, driver and passenger sides)
Service center/storage box: Diagnostic reader ports, circuit breakers and chassis battery disconnect
Light with remote reel
Emergency Roadside Service

CONSTRUCTION HIGHLIGHTS

102” wide body
Tube steel cage structure
Vacuum-bonded walls and floor with 1-1/2” expanded polystyrene insulation
Fiberglass exterior with aluminum skirts and doors
Exterior riding height: 12’ 9” (including roof air)
Finished interior height: 85”
Interior width: 96-1/2”
One-piece laminated fiberglass roof with steel tube framing and center-ducted roof A/C
Steel framed slide rooms with sloped fiberglass roof for water drainage
Laminated composite floor (two forward slides)

DRIVER COMPARTMENT AMENITIES

6-way power-operated driver and passenger seats with 3-point restraint and adjustable arms
Custom contoured dash with burlwood trim on dash instrument panel
Teleflex gauges: speedometer, tachometer, dual air pressure, oil pressure, transmission temperature, voltmeter, water temperature, fuel, odometer, trip meter
Power Gear Auto Leveling panel
Rear view monitor
18” SmartWheel multiplexed steering wheel wrapped in leather. Equipped with controls for horn, head light with high beam and flash, marker light flash, cruise control and wiper functions
Privacy drape
Heating/cooling/defrost unit in dash
Windshield wipers with delay and washers
Wrap around windshield with shade band
Electronic power sun visors
Driver side window manual sun shade
Panasonic AM/FM radio with CD player with two living room and two bedroom speakers
Passenger side control panels with step slide cover, porch light, ceiling lights, entry step, and domestic battery disconnect switches with battery switch indicator lamp
Driver and passenger side map lights
Side view mirror power controls
Tiled entry landing
Interior entry door assist grip
Cup holders
Swing-out valet tray
2-speed 12 volt dash fans
Pre-wired for CB radio
Non-skid entry steps
Bound floor carpets for entry steps

GENERAL CONVENIENCES

Panasonic 27” flat screen stereo TV in overhead dash
Panasonic four head VCR with remote control
Boosted cable antenna switch box
Padded vinyl ceiling
Florescent and incandescent lighting throughout
Custom crafted oak cabinetry and woodwork
Knobs and pulls
Decorative lighting in bedroom and living room
Power Gear 4-point computer assisted hydraulic leveling system
Centrally located relay switches (all slide rooms)
Intellitec EMS system monitor panel
Pre-plumbed for optional washer/dryer
Telephone jacks
Fire extinguisher
Smoke detector
Carbon monoxide detector
LP gas detector
Pre-wired for satellite dish
Entry door assist grip
Stepwell light
Tension mount day/night shade window shades in living/dinette/bedroom
Mini-blinds in galley/bathroom
Power step slide cover
Fabric wrapped window treatments in living area
Carpeted living room
Dining area: Pedestal style wood dining table with two chairs
Living area: -Passenger side sofabed -Driver side occasional table and chair, or hide-a-bed (depending on floorplan)

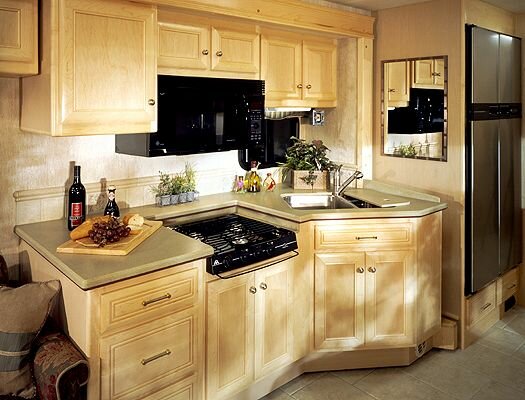

GALLEY AMENITIES

Microwave with power hood and recirculation filter
3-burner cooktop with solid-surface cover
12 cu. ft. Norcold four door 2-way refrigerator with ice maker
Custom solid-surface countertops with edge detail and tile backsplash
Solid-surface splashguard on end of galley countertops
Stainless steel double-bowl sink with solid-surface covers
Pantry
Custom tile flooring on main floor and carpet in slide rooms
Fantastic Fan with rain sensor, automatic vent, remote switch and double dome

BATH AMENITIES

Solid-surface countertop with edge detail and tile backsplash
Porcelain vanity sink with coordinating fixtures
Large vanity overhead with mirrored doors
Decorative vanity bar light
Towel ring, towel bar and toilet paper holder
Water pump switch
Fantastic Fan with rain sensor, automatic vent, remote switch and double dome
Etched glass shower enclosure
Hand held shower unit
Skylight in shower
Pocket privacy doors
Custom tile flooring
Mini-blinds with fabric valance on bath window

BEDROOM AMENITIES

Queen-size bed
Upholstered headboard
Bedspread with custom accessory pillows
Sliding mirror wardrobe
Carpeted floor
Clothes dresser
Tension-mount day/night shade window treatment
Fabric wrapped window treatments
Panasonic 20” TV with remote control
Phone jack
Lighted wardrobe
Wall sconce lighting

HEATING AND COOLING SYSTEMS

35,000 BTU and 20,000 BTU LPG furnaces
(2) 13,500 BTU Coleman low profile roof A/C’s
Dash area
- Heating and A/C system with separate controls for driver/passenger (45,000 BTU heating and 17,000 BTU cooling)

POWER SOURCES

Onan 7.5kw Quiet Diesel generator with remote start/stop
2000-watt solid-state inverter and 100-amp solid-state converter/charger with 15-amp chassis battery charge system
Four 6-volt house batteries with disconnect switch
50 amp shore cord
30 amp adapter
50 amp shore service surge protector

PLUMBING FEATURES

Atwood 10 gallon gas/electric water heater
City water to water tank fill located in plumbing bay
12-volt on demand water pump
Water filtration system
Pre-plumbed and pre-wired for washer/dryer
Black water tank flush system
Water pump switch in bath area
Electronic tank monitoring system
Heated an insulated fiberglass plumbing bay
Sewer hose storage
Exterior hot/cold running water with spray fixture in plumbing bay

TANK CAPACITIES (GALLONS...
FLOORPLAN	GRAY	BLACK	FRESH WATER	LP	FUEL
Sonoma Coast	69	53	99	31	110
Atlas Peak	69	53	99	31	110
Stag's Leap	69	53	99	31	110
Alexander Valley	69	53	99	31	110

EXTERIOR CONVENIENCES

Powder-coated steel frame entry door
-Power lock
-Keyless entry
-Screen door
Electric entry doorstep with automatic override at ignition
Omnidirectional TV antenna with coaxial cable and 12-volt boost
Chrome, heated, dual remote control cab mirrors
Awning package (patio, entry door, bedroom window and all slide rooms)
Large halogen headlights
Roof mounted chrome dual air horns
Exterior plumbing bay with manual dump valves, holding tank rinsing system (waste only) and hot/cold faucet with handheld shower wand
Exterior bay cable TV and telephone hookups
120-volt receptacle
Lighted entry door assist grip
Fog lamps
Four curb lights
Marker lights
Lighted storage bays with carpeted liners and insulated aluminum bay doors
High quality clear-coat exterior with chip-guard paint-protection coating on wheel-well flare
Exclusive paint design (4 color schemes)
Double pane windows
Patio light
Two fuel cap holders
Engine light with remote reel
Slide-Out Special Features
Power Gear electric slide-out hardware with automatic brake
Steel framed vacuum-laminated slide rooms with fiberglass roofs
Awnings extend/retract with slide rooms
Flat floor living room
Centrally located switches for slide room controls

OPTIONAL EQUIPMENT

Luxury Package:
-Roof A/C’s with heat pumps (2)
-6-way power-adjustable driver and passengerseats (driver seat with a sliding seat cushionand the passenger seat with a power footrest)
-Panasonic home theater system with DVD and surround sound speakers
-Stainless steel 4-door refrigerator
Digital Projection Cinema Package:
-(Requires Luxury Package)
-68” projection screen TV
-Remote control with one-touch automaticpicture adjustment
-Black-out shades
Convenience Package:
-Carefree power electric patio and doorawnings with remote and wind sensor
-Ladder
-Dual directional bay storage tray
-Full rear mudflap
-Manual shore cord reel
Individual Options:
-Cherry cabinetry
-Maple cabinetry
-Custom interior décor kit (preset)
-32” LCD High Definition TV
-KVH in-motion satellite system and receiver
-Advantium speedcook oven
-Washer/dryer
-Tub/shower combination (n/a on Siena floorplans)
-Ultraleather sofa (passenger side)
-15K BTU A/C upgrade with heat pump
-Hide-a-bed with air/spring mattress (driver’s side)
-04 computer table (with euro recliner only)
-Sleeper café dinette
-Additional folding chairs (2)
-3-burner cooktop with oven
-OnStar® RV navigation system
-Girard power patio box and entry doorawnings with remote and wind sensor
-3M nose protectant
-Factory delivery

SLIDE ROOM DIMENSIONS
FLOORPLAN	SLIDE-OUT	HEIGHT	WIDTH	DEPTH
36' Siena	Living Room	12'-3"	2'-8"	6'-4"
	Galley	11'-1"	1'-8"	6'-3"
	Driver Side Bedroom	6'-1"	2'-0"	5'-3"
	Passenger Side Bedroom	4'-7"	1'-6"	5'-8"
40' DaVinci	Living Room	12'-3"	2'-8"	6'-4"
	Galley	12'-8"	1'-8"	6'-3"
	Driver Side Bedroom	6'-1"	2'-0"	5'-3"
40' Genoa	Living Room	12'-3"	2'-8"	6'-4"
	Galley	12'-8"	1'-8"	6'-3"
	Driver Side Bedroom	7'-0"	2'-0"	5'-3"
