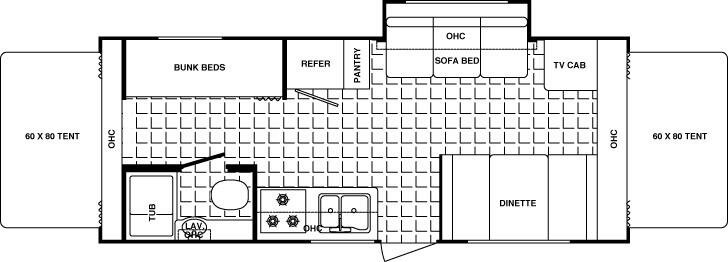

2004 Aero Coach Aerolite Cub Specs, Towing Weight, Floorplan + Features

Photo Tour
zoom

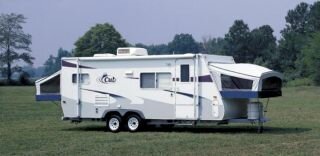

Exterior
Available Photos (Click to enlarge)

RV Must-Have! Never Run Out of Power Again!
Year: 2004
Manufacturer: Aero Coach
Model: Aerolite Cub
RV Type: Travel Trailer
Condition: Used
Price Range: $11,000 - $19,000
Description
For active families on the go, Cub expandable travel trailers add sleeping space without the additional length and weight that come with traditional travel trailers. And the lightweight design and aerodynamic profile make the Cub easy to tow.
From the ground up it’s easy to see that Cub offers the most value for your dollar. The fully laminated all aluminum super structure rests on a European style ultra lightweight frame. Fiberglass exterior walls and rubber lined roof are designed for years of enjoyable use. The expandable beds feature CAVLAR 2000 tents that include a full 5-year warranty. The Cub rides on Al-Ko rubber torsion axles that give it an “Independent Suspension” style ride. You won’t find all these features on the competition.
The interior of the 2004 Cub is our best looking ever. The designer décors with luxurious fabrics, raised panel upper cabinet doors, and Congoleum vinyl flooring make the Cub your best choice when it comes to expandable travel trailers. But the value doesn’t stop there. The kitchen in the Cub is loaded with features including a Norcold refrigerator, a 3-burner LP range, a double bowl composite sink with a high-rise faucet, and abundant storage. So if you are looking for the best built, feature-packed lightweight expandable, look no further.
Choose Cub from Aerolite. The original ultra-light travel trailer.
Features
2004 CUB STANDARD EXTERIOR FEATURES
  • 2-20 lb LP bottles with ABS cover
  • 26" radius entry door
  • ABS wheel wells
  • Tandem axles with 4-wheel electric brakes (most models)
  • Welded aluminum laminated superstructure (roof, floor and walls)
  • Norco lightweight frame
  • Al-Ko rubber torsion “independent suspension” axles
  • ABS fender skirts
  • Corrosion-free laminated darco underbelly
  • EPDM one-piece seamless rubber roof
  • Flush combo entry latch / deadbolt lock
  • High-end designer graphics
  • Rain gutter with corner down spouts
  • Rear bumper and corner guards
  • Sand pads on jacks
  • Single entry step
  • Tinted radius clamp ring windows
  • Exterior step light with switch
  • Entry assist handle at door
  • Break-away trailer switch
  • 120 volt exterior outlet
  • Key-locking “Easy Latch” tent doors
  • Trash bag holder
  • TV Shelf
  • 60 x 80 queen beds in tents
  • Roll-over sofa bed
CUB STANDARD INTERIOR FEATURES
  • 5" thick, reversible dinette seats
  • Bathroom medicine cabinet (not all models)
  • Designer window treatments
  • Double bowl, white composite sink with high-rise faucet and dual sink covers
  • Fiberlink bathtub
  • Shower curtain
  • Glass décor light over dinette table
  • Mini blinds throughout
  • Power roof vent in bathroom
  • Residential tile-like linoleum
CUB STANDARD APPLIANCES AND ELECTRICAL
  • 19M BTU forced air DSI furnace with
  • wall thermostat
  • Ducted heat
  • 3 burner high-output range
  • 30 amp power cord with storage compartment
  • 6 gallon gas water heater with bypass
  • Demand water pump
  • 12 volt interior lights with wall switch
  • and switch on light
  • Fire extinguisher
  • LPG leak detector
  • Norcold single door gas / electric refrigerator
  • Patio light
  • Pre-wired for air conditioning
  • Pre-wired for cable TV
  • Pre-wired for stereo
  • Range hood with 12 volt light & exhaust fan
  • Smoke detector
  • Solid state converter with built-in
  • battery charger
  • Systems monitor panel
  • CUB optional Features
  • Cub Pack Group:
  • 13.5 air conditioning with wall thermostat
  • AM / FM / CD player with four speakers
  • A&E 8300 series awning
  • TV antenna with cable prep
  • Microwave
  • Spare tire with cover
  • Bunk end lights
  • 6 cubic feet double door refrigerator
  • DSI water heater (gas / electric)
  • Electric slide out motor
  • Heated waste holding tanks (3)
  • Oven with range
  • Safety glass
  • Spray-away wash station
  • Stove cover
  • Tub surround
  • Water filter system
2004 CUB 160 195 214 215 21TT 235 236 23BH 25QB
Unloaded Vehicle Weight 2776 3342 3718 3402 3860 3774 3838 4016 3690
Hitch Dry Weight 242 238 308 360 456 350 310 476 594
Net Cargo Capacity 1074 2658 1122 1438 980 1066 1002 824 2310
Exterior Length 16 ft, 10 in 19 ft, 10 in 23 ft, 3 in 21 ft, 11 in 23 ft, 11 in 21 ft, 11 in 23 ft, 3 in 25 ft, 11 in 25 ft, 11 in
Exterior Width 7 ft, 6in 7 ft, 6in 7 ft, 6in 7 ft, 6in 7 ft, 6in 7 ft, 6in 7 ft, 6in 7 ft, 6in 7 ft, 6in
Exterior Height 9 ft, 4.5 in 9 ft, 4.5 in 9 ft, 4 in 9 ft, 5.5 in 9 ft, 4 in 9 ft, 5 in 9 ft, 4.25 in 9 ft, 3.75 in 9 ft, 3 in
Gross Vehicle Weight Rat... 3850 6000 4840 4840 4840 4840 4840 4840 6000
Fresh Water Capacity 30 30 30 30 30 30 30 30 30
Grey Water Capacity 34 34 34 34 34 34 34 34 34
Black Water Capacity 22 22 22 22 22 22 22 22 22
Tire Size ST205/75D14(C) ST205/75D14(C) ST205/75D14(C) ST205/75D14(C) ST205/75D14(C) ST205/75D14(C) ST205/75D14(C) ST205/75D14(C) ST205/75D14(C)
Furnace Size (BTU's) 19,000 19,000 19,000 19,000 19,000 19,000 19,000 19,000 19,000
